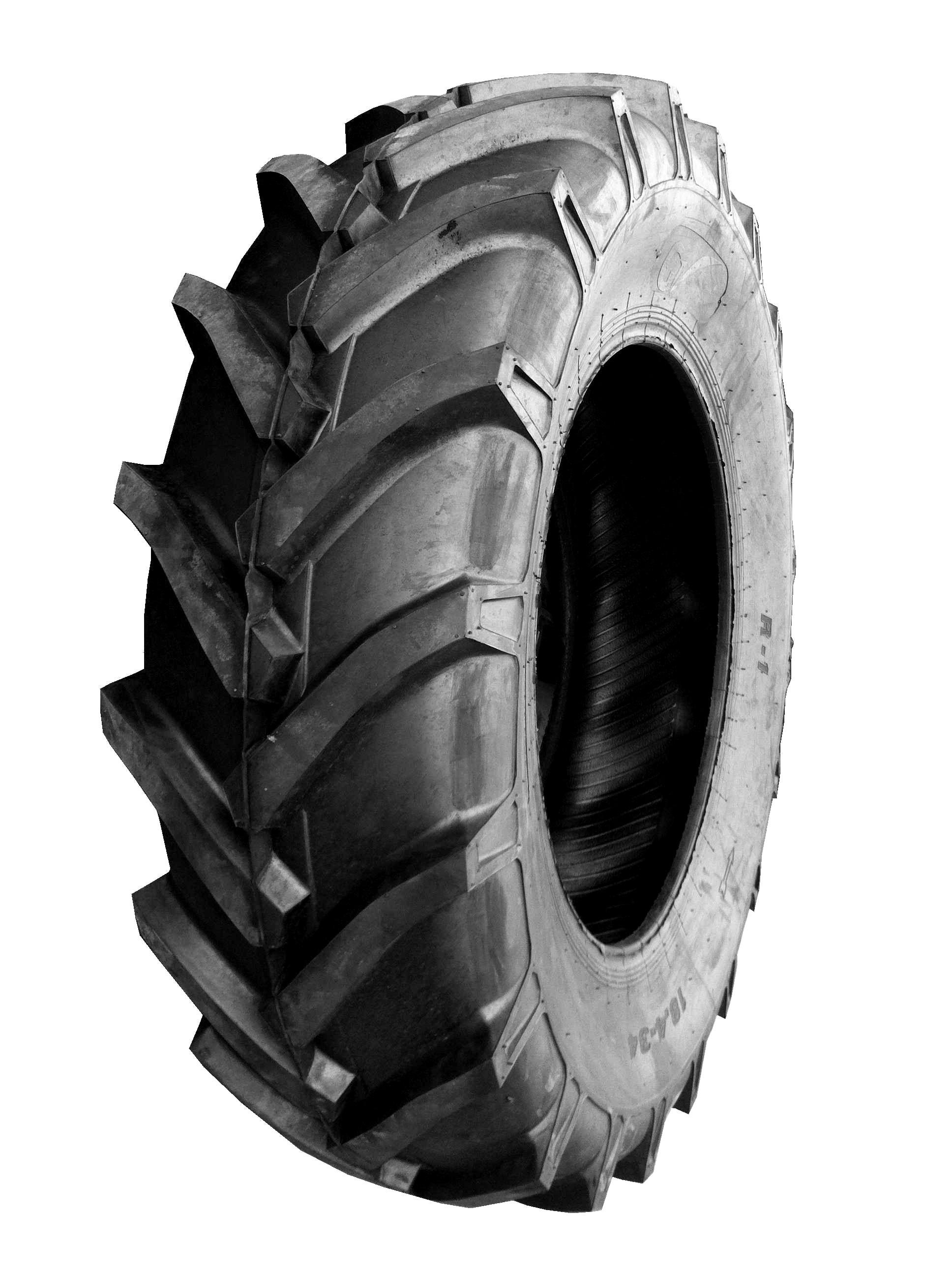

Agricultural tractor tyres R1
Agricultural tractor tyres R1 Agricultural tractor tyres R1 Agricultural tractor tyres R1 Agricultural tractor tyres R1 Agricultural tractor tyres R1

Agricultural tractor tyres R1

Product ID : CS104
Product Attributes :

With 17 years experiences that we can offer the premium quality of tractor tyres that are manufactured from state of the BKT technology and high grade raw material. These tyres offer excellent load carrying capacity, durability and directional control.

Product Description

BOSTONE Tyres factorty can manufacturer the tractor rear tyres with R1 pattern,tractor front tires (F2, 3 rib), paddy field tractor tyres and wheels with the deep tread pattern; We can give you the cheap prices with the good quality tires !

Our Companys Advantages:

1. TUV verified supplier .

2. More than 17 years experiences in the tyres field .

3. Experienced sales team .

4. Perfect after-sales service .

5. We have More than 180 countries customers .



Pattern pictures:

Our AGR tires complete sizes as follows:

Tractor rear tyres with R1 pattern:

8.3-20,8.3-22,8.3-24,9.5-16,9.5-20,9.5-22,9.5-24,9.5-32,11.2-20,11.2-24,11.2-28,11-38,11.2-38,12.4-24,12.4-28,12-38,13.6-24,13.6-26,13.6/12-28,13.6/12-38,14.9-24,400/80-24(15.5/80-24),14.9-26,14.9-28,14.00-38,15-24,15.5-38,16.9-24,16.9-28,16.9-30,16.9-34,16.9/14-38,18.4-30,18.4-34,18.4-38,20.8-38,3.50-4,3.50-5,3.50-6,4.00-7,4.00-8,4.00-10,4.00-12,4.50-19,5.00-10,5.00-12,5.00-14/5-14,5.00-15,5.50-17,6.00-12,6.00-14/6-14,6.00-16,6.50-14,6.50-16,7.50-16,7.50-18,7.50-20,8.25-16,8.3-20,8.3-22,8.3-24,9.5-16,9.5-20,9.5-22,9.5-24,9.5-32,10.0/75-15.3 etc.

Tractor front tyres with 3 rib/F2 pattern:

4.00-12,4.00-14,4.00-15,4.00-16,4.00-19,5.00-15,5.00-16,5.50-16,6.00-16,6.00-19,6.50-16,6.50-20,7.50-16,7.50-18,7.50-20,9.00-16,10.00-16,11.00-16,7.5L-15,9.5L-15,11L-15 etc.

Small tractor tyres and wheels (rotavator tyres) with R1:

3.50-4, 350-5, 3.50-6, 4.00-7, 5.00-7, 4.00-8, 5.00-8,4.00-9, 4.00-10, 5.00-10, 6.00-9, 4.00-12, 5.00-12, 6.00-12 etc.

High flotation tires (tyres):

400/60-15.5,400/60-22.5,500/50-17,500/60-22.5,550/45-22.5,550/60-22.5,600/50-22.5,600/55-26.5,650/65-30.5,700/40-22.5,700/50-26.5,750/60-22.5,750/60-30.5,800/45-26.5,850/50-30.5

Radial agricultural tyres:

420/85R30(16.9R30),520/85R38(20.8R38),420/85R28(16.9R28),460/85R30(18.4R30),420/85R34(16.9R34),460/85R38(18.4R38), 520/85R42(20.8R42),460/85R34(18.4R34) etc.

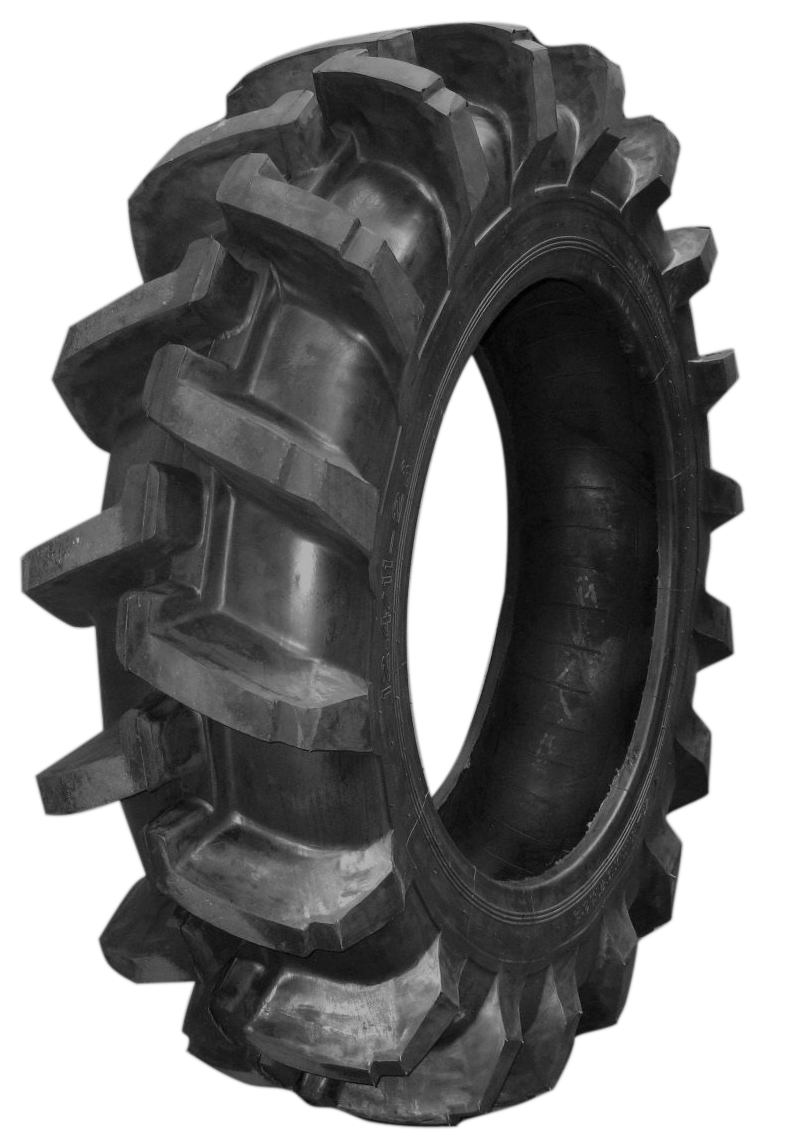

Agricultural paddy tires:

6.00-12,6.50-16,7.50-16,8.3-20,8.3-24,9.5-24,11-32,11.2-28,11.2-24,12.4-28,13.6-38,16.9-34,18.4-30,18.4-34,18.4-38

Irrigation tyres (tires):

11.2-24,11.2-38,12.4-24,14.9-24



The Technical Data as follows:

Size Ply Rating Standard Rim Overall Diameter
(MM)
Section Width
(MM)
Pressure
(KPA)
Max Load
(KG)
11.2-20 10 W10 1005 285 240 1085
11.2-24 10 W10 1105 285 300 1380
11.2-28 10 W10 1205 285 240 1305
11-38 10 W10 1540 305 180 1630
11.2-38 10 10.00 1448 285 180 1150
12.4-24 10 W11 1160 315 230 1415
15.5/80-24 TL 12 13.0 1262 394 300 2900
12.4-28 10 W11 1260 315 230 1510
12-38 10 DW11 1575 330 220 1800
13.6-24 10 W12 1210 345 250 1790
13.6-26 10 W12 1300 345 200 1600
13.6-28 10 W12 1310 345 250 1910
13.6/12-38 10 W12 1565 345 250 2215
14.9-24 10 W13 1265 378 230 1990
14.9-26 10 W13 1315 378 230 2120
14.9-28 10 W13 1365 378 230 2120
14.9-30 10 W13 1415 378 230 2190
14.00-38 10 W12 1580 355 220 2000
15-24 10 DW14 1330 410 280 2800
15.5-38 12 W14L 1570 395 230 2320
16.9-24 10 W15L 1335 430 200 2230
16.9-28 10 W15L 1435 430 200 2380
16.9-30 10 W15L 1485 430 200 2455
16.9-34 10 W15L 1585 430 200 2605
16.9/14-38 10 W15L 1685 430 200 2760
18.4-30 10 W16L 1550 467 180 2815
18.4-34 10 W16L 1655 467 180 2990
18.4-38 12 W16L 1755 467 230 3575
20.8-38 12 W18L 1887 528 200 4000

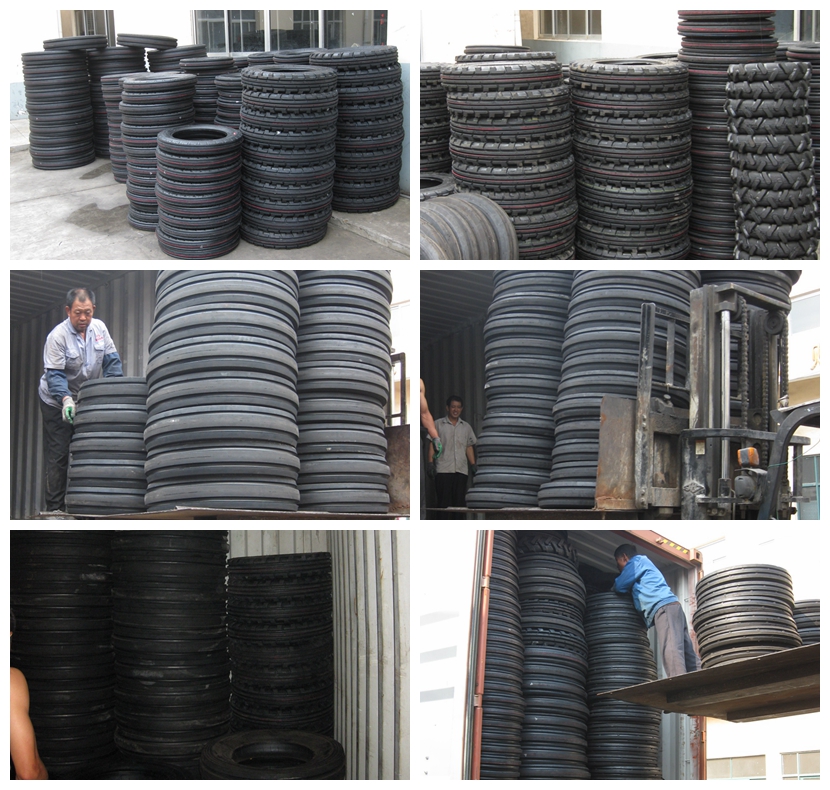

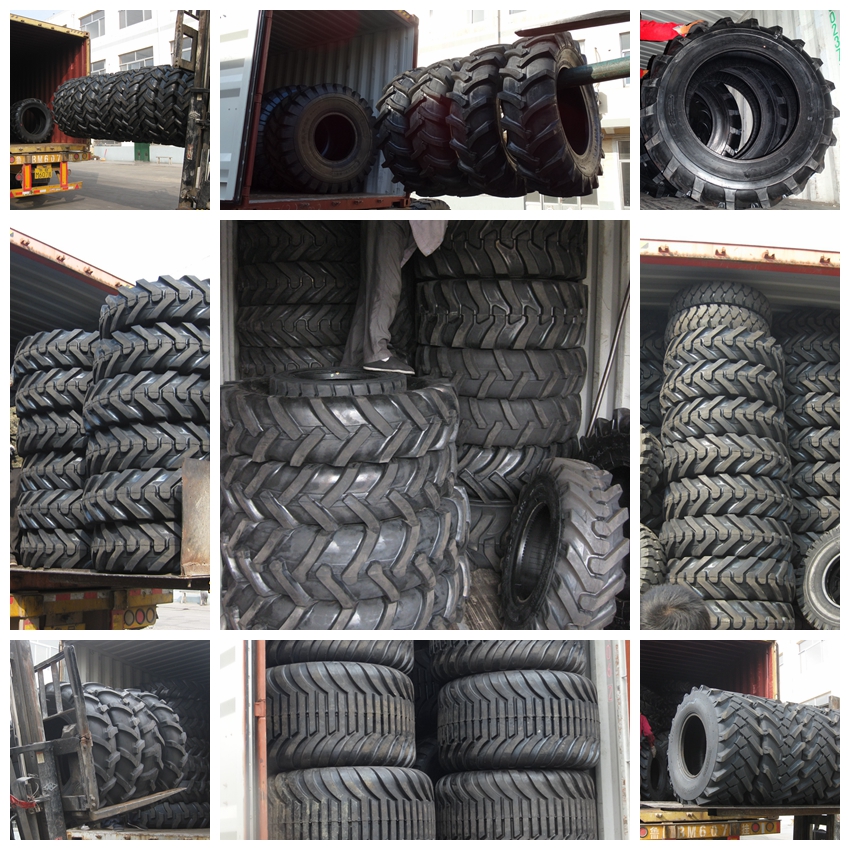

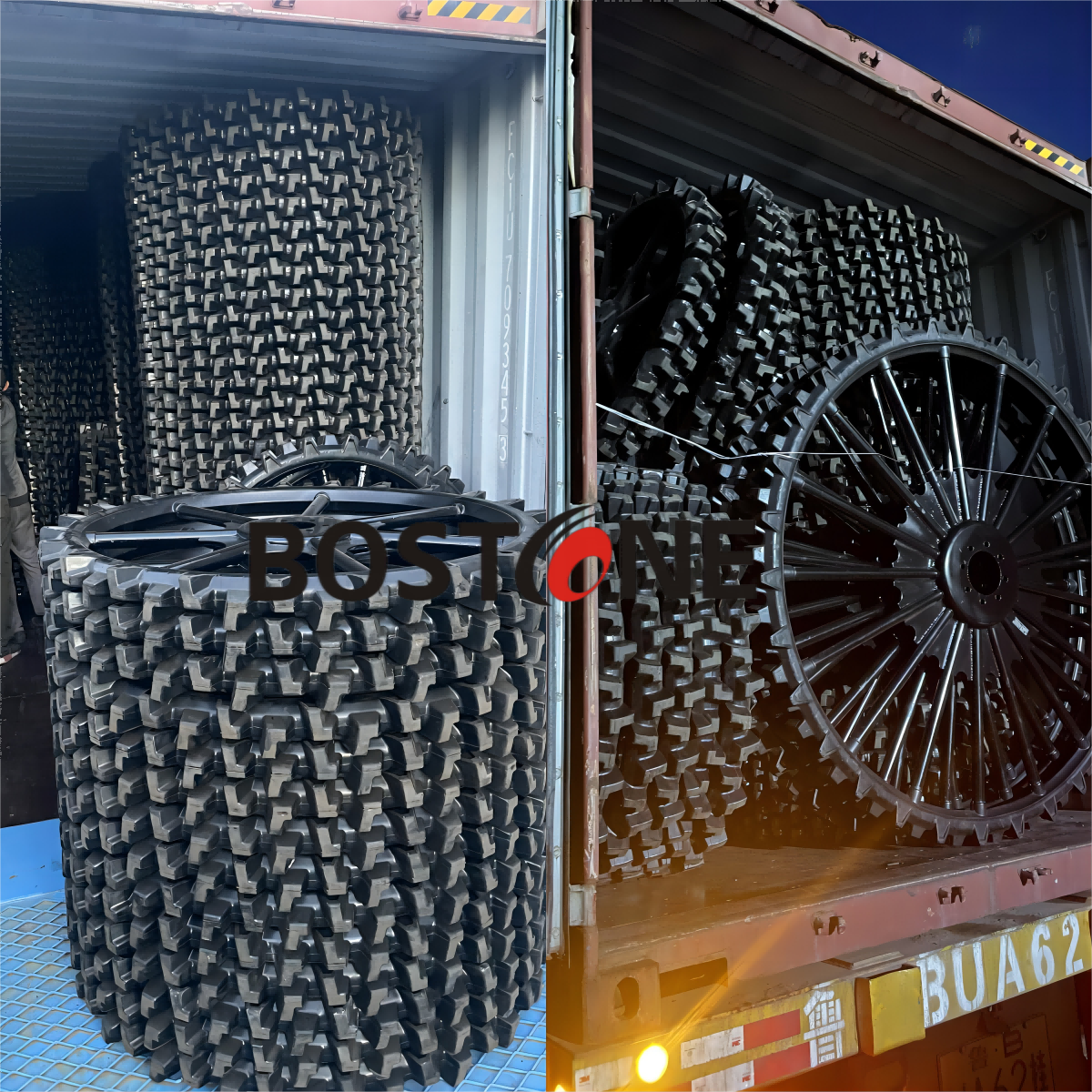

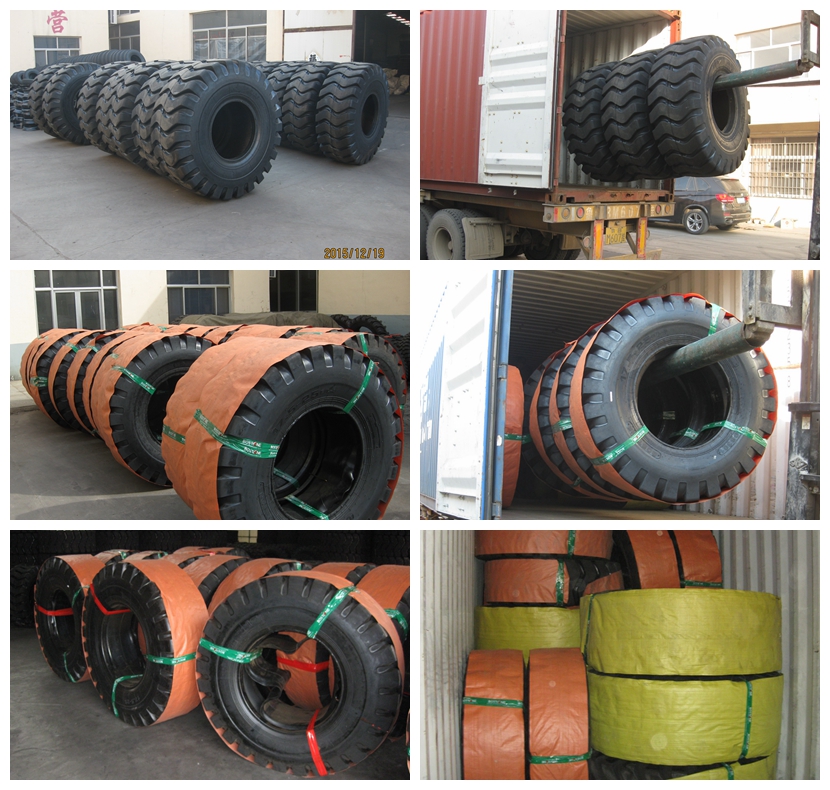

Loading Photoes :



Why Usanty

1) We have more than 17 years experiences in the tyres' field, so we have the strength to give you the good quality tyres with the very competitive prices !

2) Our tyres' quality guaranteed as follows:

Agricultural tyres: 2 years ;

Industrial tyres: 2000 working hours ;

Forklift tyres: 2000 working hours ;

OTR tyres: 2000 working hours ;

Bias truckTyres: 50000 KM ;

3) Our tyres have passed the Certificates: ISO9001, DOT, CE, REACH and PAHS etc.

4) We can accept the OEM service which can make your own brand name on the tyres.

5) We can develop the new mould of tyres which according to our customers requirement .

Please feel free to send us your inquiry letter, we will help to give you our best offers !
